Low-Maintenance Cosmetic Tube Making Extrusion Line for Lubricant Soft Packaging
USD 11310.00 – 30345.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Stock | 0 piece |
| Category | Machinery |
Trade Assurance
On-time delivery
Sample available
Certified supplier
Product Description

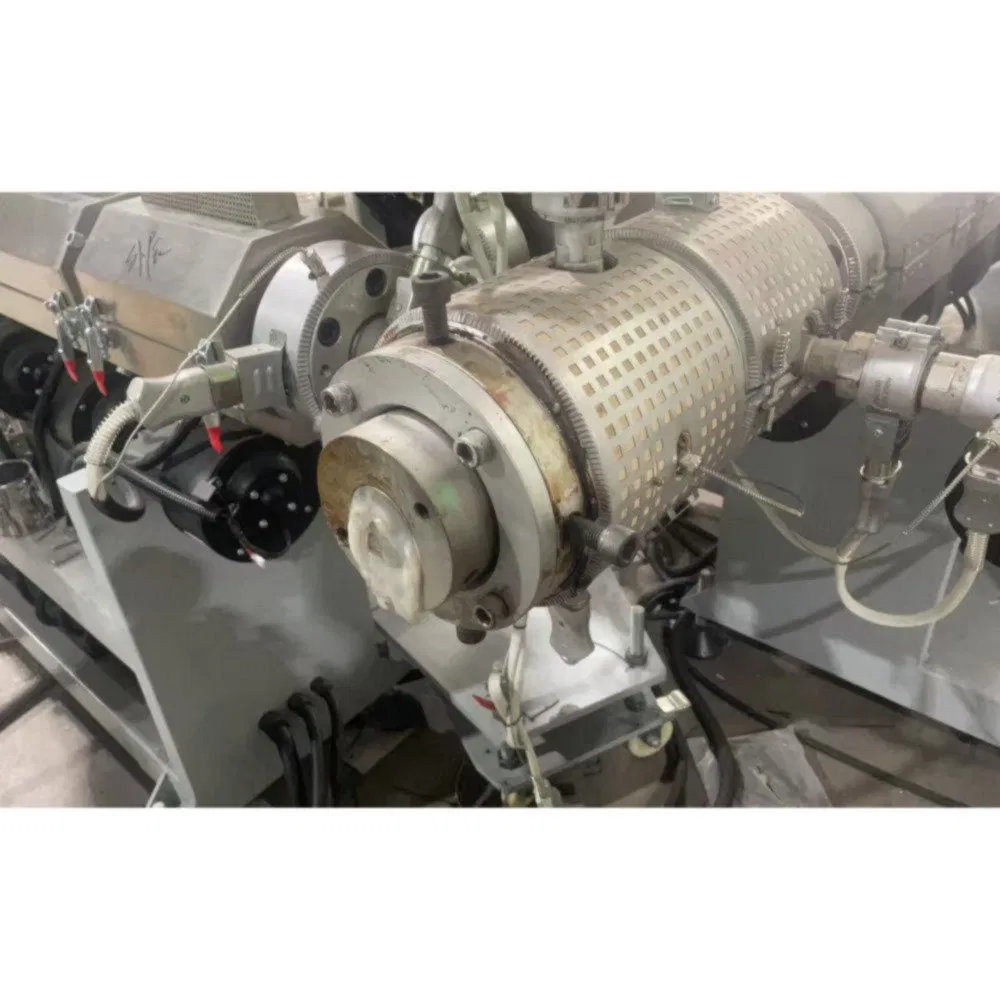

This plastic cosmetic tube extrusion line is designed for producing multi-layer tubes with diameters from 13mm to 60mm and lengths from 45mm to 230mm. It features a servo motor-driven system, spiral runner die head for fusion-line-free output, and supports up to 5 layers with EVOH barrier options. The line is fully automatic with touch screen temperature control and self-circulating chilled water cooling.
Technical Specifications
| Model NO. | SHY45+SJ30+SJ30+SJ30+SJ45 |
| After-sales Service | Technical Support |
| Warranty | Support |
| Type | Profile Extruder |
| Plastic Processed | LDPE / EVA / EVOH / EVA / LDPE |
| Product Type | Profile Extrusion Molding Machine |
| Feeding Mode | Autoloader |
| Assembly Structure | Integral Type Extruder |
| Screw | Single-Screw |
| Engagement System | Full Intermeshing |
| Screw Channel Structure | Non Deep Screw |
| Exhaust | Don't Exhaust |
| Automation | Automatic |
| Computerized | Computerized |
| Product Name | Plastic Cosmetic Tube Extrusion Line |
| Keywords | Cosmetic Tube Extrusion Line |
| Layer Configuration | 1-Layer / 2-Layer / 3-Layer / 4-Layer / 5-Layer |
| Raw Material | PE (LDPE / EVA / EVOH); up to 5% Recycled Material |
| Tube Diameter Range | 13mm - 60mm |
| Tube Length Range | 45mm - 230mm |
| Production Linear Speed | 13 - 23 M/Min |
| Cutting Speed | up to 230 PCS/Min |
| Wall Thickness Accuracy | ±0.02mm |
| EVOH Barrier Layer Thickness | 0.01mm - 0.02mm |
| Drive System | Servo Motor-Driven Extrusion & Traction-Cutting |
| Die Head Design | Spiral Runner Die Head (Fusion-Line Free) |
| Temperature Control | Touch Screen Multi-Channel Programmable Controller |
| Cooling System | Self-Circulating Chilled Water Circuit (5-10°C) |
| Power Consumption | 30kw(1-2 Layer)/40kw(3 Layer)/60kw(4-6 Layer) |
| Transport Package | Sea Worthy |
| Specification | Standard Specifications or Customized |
| Trademark | SANHUIYING |
| Origin | Guangdong, China |
| HS Code | 8477209000 |
