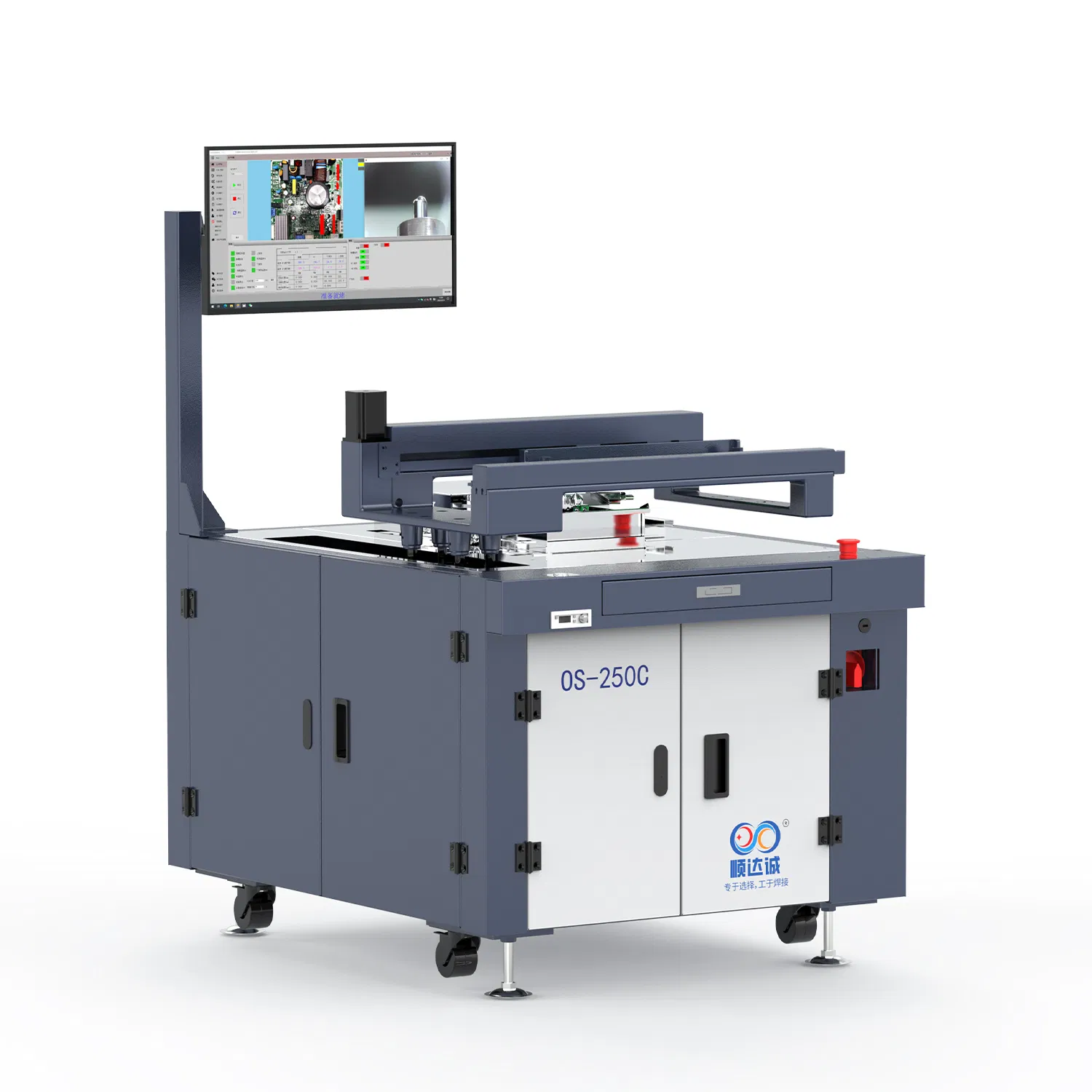

Semi-Automatic Selective Wave Soldering Machine OS-250C
USD 14000.00 – 18000.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Stock | 0 piece |
| Category | Machinery |
Trade Assurance
On-time delivery
Sample available
Certified supplier
More from this Supplier
Product Description
This semi-automatic selective wave soldering machine is designed for PCB soldering in the electrical, lighting, auto, and communication industries. It features 4-axis movement, CE and ISO certification, and supports PCB sizes up to 330x250 mm.
Technical Specifications
| Model NO. | OS-250C |
| Axis | 4 Axis |
| Style | Floor |
| Control | Semi-Automatic |
| Application | Electrical & Electronics Industry, Lighting Industry, Auto Industry, Communication Industry |
| Certification | CE, ISO |
| Operating Height | 900±20mm |
| Weight | Approx.240kg |
| Power Supply | 1φ 220V 50/60Hz |
| Total Power | 5.5kw |
| PCB Size | Max:330(L)*250(W)(mm) |
| Top Component Height | Max130mm |
| Bottom Component Height | Max30mm |
| PCB Weight | Max5kg |
| Solder Capacity | 16kg |
| Spray Flux Volume | 2L |
| Soldering Movement Mode | PCB Movement in Xyz Axis |
| N2 Consumption | 1.5nm³/H(Nitrogen Concentration>99.999%) |
| Transport Package | Vacuum Wooden Box |
| Specification | 850L*1100W*1400H (mm) |
| Trademark | Sundarc |
| Origin | Dongguan, China |
| HS Code | 8515190010 |
