TCK63 Inclined Bed CNC Lathe Machine with 12 Inch Hydraulic Chuck
USD 53000.00 – 53500.00
/ piece
Price varies by quantity and specifications
| MOQ | 1 piece |
| Stock | 0 piece |
| Category | Machinery |
Trade Assurance
On-time delivery
Sample available
Certified supplier
Product Description

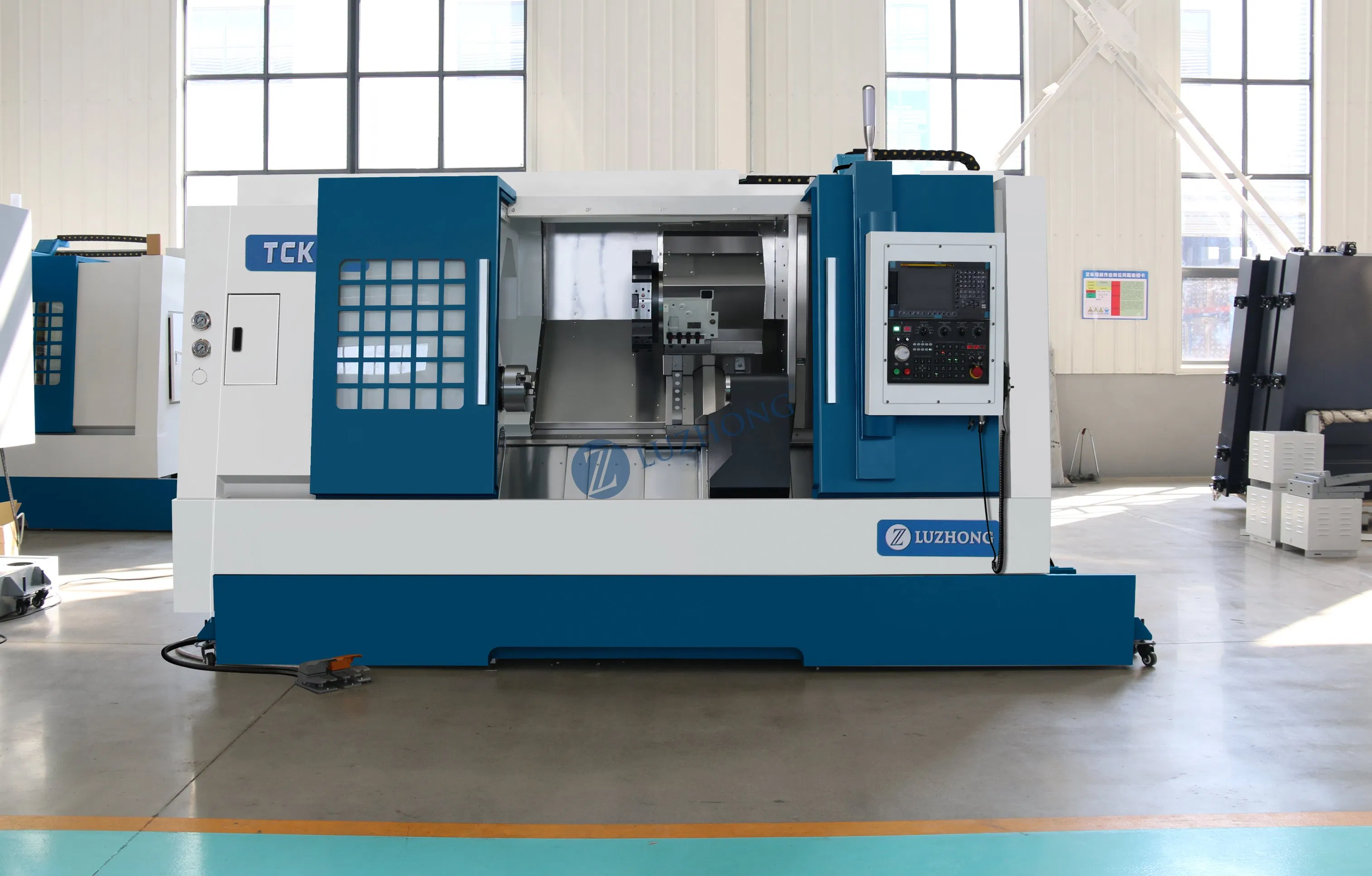

This TCK63 CNC lathe features an inclined bed design and a 12-inch hydraulic chuck, offering high precision and automatic operation. It is suitable for turning various workpieces with a maximum length of up to 3000 mm and is equipped with a stepless spindle speed system.
Technical Specifications
| Model NO. | TCK63 |
| After-sales Service | Online technical consultant |
| Warranty | 12 months |
| Type | Turret Lathe |
| Processing Accessory | configuration |
| Guide Rail | Inclined Guide Rail |

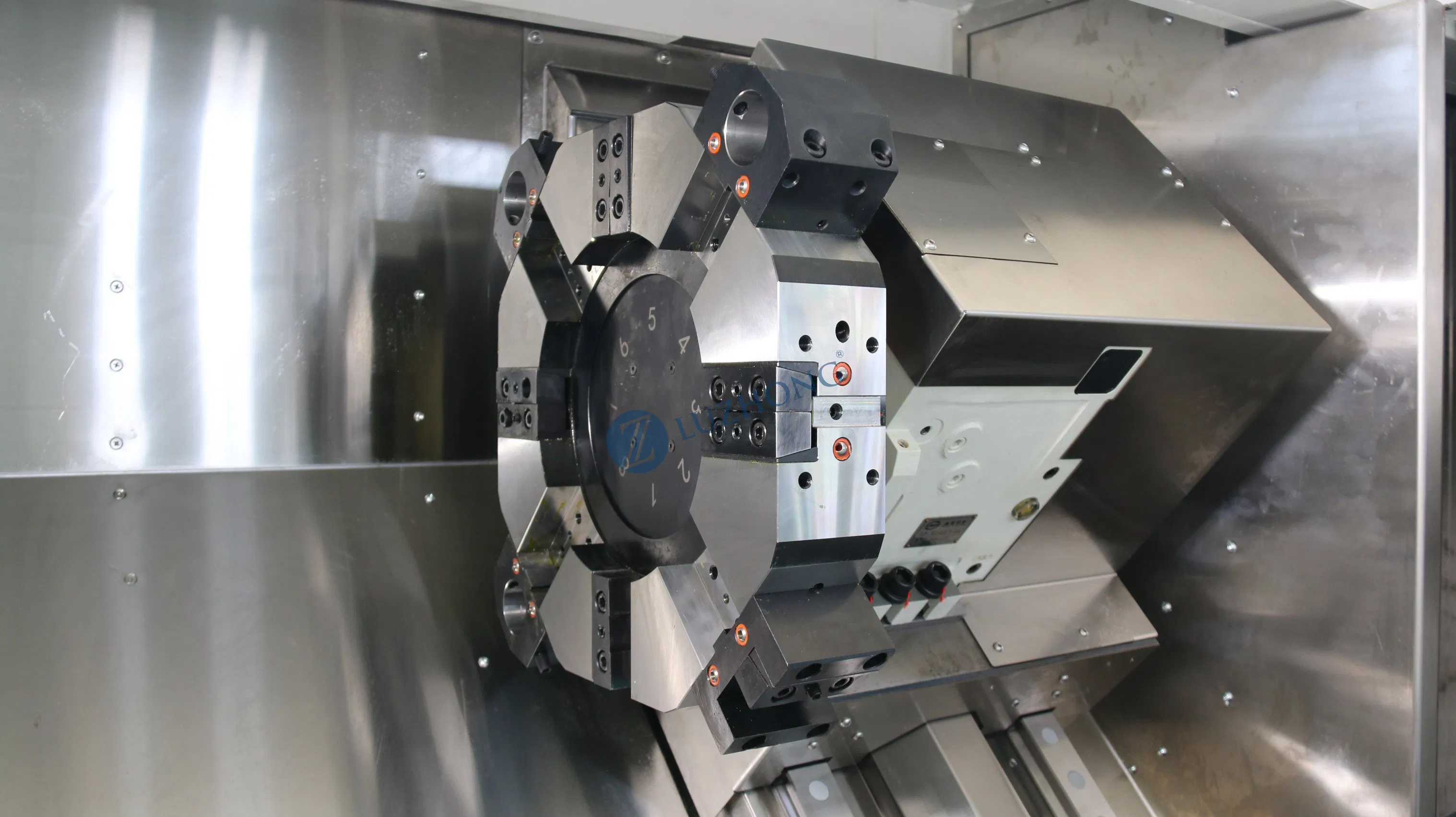

| Tool Holder | configuration |
| Power Source | Electric |
| Controlling Mode | CNC |
| Automatic Grade | Automatic |
| Setting Mode | Floor-type |
| Precision | High Precision |
| Certification | GS, CE, RoHS, ISO 9001 |
| Condition | New |
| Swing Over Bed | 720 |
| Max.workpiece lenght | 1000 /1500 /2000 /3000 |
| Spindle bore | 80 |
| Spindle nose type | A2-11 |
| Spindle speed steps | stepless |
| X axis travel | 250 |
| Z axis travel | 1020/1520/2050/3050 |
| Main motor power | 15/18.5 |
| Transport Package | Plywood Case with Steel Base |
| Specification | 3200*2200*2300 |
| Trademark | luzhong |
| Origin | China |
| HS Code | 8457101000 |
